M3645

Line Regen


The M3645 Line Regen is the latest release of Digital Line Regeneration Braking solutions from Bonitron. The M3645 Series replaces the legendary M3345 Series, but continues its legacy with additional features, simplicity, and reliability.

When variable speed drive systems are braking, they generate power that must be dissipated. If the excess energy is not dissipated, the drive system can lose control of the process due to an overvoltage trip, or must extend the braking time to keep from overpowering the drive.

There are two common methods of dissipating excess energy. The traditional method involves a resistor, but resistors take up a significant amount of space and produce an abundance of heat, making them impractical to integrate into a drive cabinet. The better solution for most applications is the M3645 Digital Line Regen. Instead of dissipating the excess energy as heat in a resistor, the M3645 returns this energy to the power grid efficiently, with minimal heat loss, allowing the entire braking system to be installed in the drive cabinet. This reduces installation footprint and facility cooling costs.

The M3645 offers an interactive digital display that allows quick access to current, voltage, status logs, and energy monitoring data.

*Note that the M3645F includes fuses and fuse holders

RoHS CompliantRoHS Compliant

All 150 - 300A Regen models are not UL listed.


The M3645 offers an interactive digital display that allows quick access to current, voltage, status logs, energy monitoring data, and more.

  • 208 - 600VAC support with 50/60Hz auto select
  • Replaces braking resistor solution
  • Over 99% efficient
  • Small footprint
  • Interactive digital display
  • Simple hook-up with no software setup
  • Integrated filtering and surge suppression
  • Parallel additional modules for higher current (Consult Bonitron for more than 2 total)
  • 150% overload
Line Regen Fuse Plate Line Reactor
Phase Power Display
Type
Model Number Current Watt
Loss
(Max)
Dimensions
(H" x W" x D")
Model Weight Model Number Model Number Dimensions
(H" x W" x D")
Cont. Peak Cont. Peak
230 - 240 VAC
3 14.4 HP 21.6 HP Digital M3645-L030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX* N/A
3 14.4 HP 21.6 HP LEDs M3645-L030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX*
3 24 HP 36 HP Digital M3645-L050-M11-D 50 A 75 A 265W 20.00" x 10.00" x 10.10" 78 lbs M3645F-H050-XX*
3 24 HP 36 HP LEDs M3645-L050-M11-L 50 A 75 A 265W 20.00" x 10.00" x 10.10" 78 lbs M3645F-H050-XX*
3 48 HP 72 HP Digital M3645-L100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 48 HP 72 HP LEDs M3645-L100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 72 HP 108 HP Digital M3645-L150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-L150R 17.95" x 16.30" x 18.76"
3 72 HP 108 HP LEDs M3645-L150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-L150R 17.95" x 16.30" x 18.76"
3 108 HP 160.8 HP Digital M3645-L225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-L225R 17.95" x 16.30" x 18.76"
3 108 HP 160.8 HP LEDs M3645-L225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-L225R 17.95" x 16.30" x 18.76"
3 144 HP 180 HP Digital M3645-L300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-L300R 17.95" x 16.30" x 18.76"
3 144 HP 180 HP LEDs M3645-L300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-L300R 17.95" x 16.30" x 18.76"

* XX can be AC or DC depending on which fusing option you need.

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information. Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

Line Regen Fuse Plate Line Reactor
Phase Power Display
Type
Model Number Current Watt
Loss
(Max)
Dimensions
(H" x W" x D")
Model Weight Model Number Model Number Dimensions
(H" x W" x D")
Cont. Peak Cont. Peak
380 - 415 VAC
3 25 HP 37.5 HP Digital M3645-E030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX* N/A
3 25 HP 37.5 HP LEDs M3645-E030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX*
3 41.7 HP 62.6 HP Digital M3645-E050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050-XX*
3 41.7 HP 62.6 HP LEDs M3645-E050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050-XX*
3 83 HP 125 HP Digital M3645-E100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 83 HP 125 HP LEDs M3645-E100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 125 HP 187.5 HP Digital M3645-E150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-E150R 17.95" x 16.30" x 18.76"
3 125 HP 187.5 HP LEDs M3645-E150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-E150R 17.95" x 16.30" x 18.76"
3 187.5 HP 279.2 HP Digital M3645-E225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-E225R 17.95" x 16.30" x 18.76"
3 187.5 HP 279.2 HP LEDs M3645-E225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-E225R 17.95" x 16.30" x 18.76"
3 250 HP 312.5 HP Digital M3645-E300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-E300R 17.95" x 16.30" x 18.76"
3 250 HP 312.5 HP LEDs M3645-E300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-E300R 17.95" x 16.30" x 18.76"

* XX can be AC or DC depending on which fusing option you need.

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information. Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

Line Regen Fuse Plate Line Reactor
Phase Power Display
Type
Model Number Current Watt
Loss
(Max)
Dimensions
(H" x W" x D")
Model Weight Model Number Model Number Dimensions
(H" x W" x D")
Cont. Peak Cont. Peak
460 - 480 VAC
3 28.8 HP 43.2 HP Digital M3645-H030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX* N/A
3 28.8 HP 43.2 HP LEDs M3645-H030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-H030-XX*
3 48 HP 72 HP Digital M3645-H050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050-XX*
3 48 HP 72 HP LEDs M3645-H050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-H050-XX*
3 96 HP 144 HP Digital M3645-H100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 96 HP 144 HP LEDs M3645-H100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-H100-XX*
3 144 HP 216 HP Digital M3645-H150T-M15-D 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-H150R 17.95" x 16.30" x 18.76"
3 144 HP 216 HP LEDs M3645-H150T-M15-L 150 A 225 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H150-XX* M3645-H150R 17.95" x 16.30" x 18.76"
3 216 HP 321.6 HP Digital M3645-H225T-M15-D 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-H225R 17.95" x 16.30" x 18.76"
3 216 HP 321.6 HP LEDs M3645-H225T-M15-L 225 A 335 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H225-XX* M3645-H225R 17.95" x 16.30" x 18.76"
3 288 HP 360 HP Digital M3645-H300T-M15-D 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-H300R 17.95" x 16.30" x 18.76"
3 288 HP 360 HP LEDs M3645-H300T-M15-L 300 A 375 A 2980W 26.00" x 13.90" x 11.11" - M3645F-H300-XX* M3645-H300R 17.95" x 16.30" x 18.76"

* XX can be AC or DC depending on which fusing option you need.

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information. Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

Line Regen Fuse Plate Line Reactor
Phase Power Display
Type
Model Number Current Watt
Loss
(Max)
Dimensions
(H" x W" x D")
Model Weight Model Number Model Number Dimensions
(H" x W" x D")
Cont. Peak Cont. Peak
575 - 600 VAC
3 36 HP 54 HP Digital M3645-C030-M10-D 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-C030-XX* N/A
3 36 HP 54 HP LEDs M3645-C030-M10-L 30 A 45 A 180W 20.00" x 10.00" x 10.10" 62 lbs M3645F-C030-XX*
3 60 HP 90 HP Digital M3645-C050-M11-D 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-C050-XX*
3 60 HP 90 HP LEDs M3645-C050-M11-L 50 A 75 A 265W 22.00" x 11.30" x 10.60" 78 lbs M3645F-C050-XX*
3 120 HP 180 HP Digital M3645-C100-M12-D 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-C100-XX*
3 120 HP 180 HP LEDs M3645-C100-M12-L 100 A 150 A 470W 24.00" x 12.00" x 12.10" 123 lbs M3645F-C100-XX*

* XX can be AC or DC depending on which fusing option you need.

Multiple units can be paralleled to cover higher current ratings. See user manual for derating information. Consult Bonitron before using more than 2 total.

See the M3545 Line Regen for applications below 30A or for Single Phase applications.

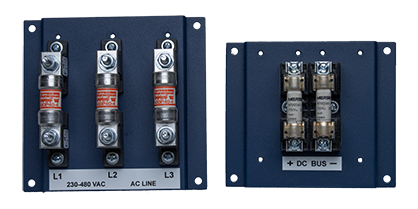

Kit 3645F
M3645F
In order to maximize value, the M3645 Line Regen does not have internal fusing. Such fusing can be supplied locally (consult for sizing) or you can purchase an M3645F that installs easily with the M3645 Digital Line Regen. See the tables on this page to determine which fuses are used with your M3645 Digital Line Regen, or review the M3645F User Manual, which is linked to the right.
Kit 3645F
You can also purchase a Kit 3645F which includes only the fuses, in case you don't need the backplate. See the tables on this page to determine which Fuse Kit is used with your M3645 Digital Line Regen.
Savings

Bonitron Line Regen units return regenerative energy back to the AC line where it can used by equipment within the facility. This reduces the amount of power required from the utility; reducing utility costs. The formula to the right is an example for a 100HP application. Visit Bonitron.com/RegenCalculator to see your potential savings.

The calculator does not include the cost of the Line Regen itself. Contact Bonitron for pricing and to discuss your application. When comparing a Line Regen to a Resistor, consider the added cost of wiring, conduit, or cooling for a resistor. While many resistors produce enough heat that they need to be located outside, Bonitron Line Regens are 99% efficient and are designed to be integrated into the drive cabinet.

Note: This calculator is for illustration purposes. Contact Bonitron to discuss your application and savings.

M3345 Line Regen

M3345 Series (Old)

  • 208-480VAC 50Hz or 60Hz
  • Master/Slave for up to 270A Peak / 165A continuous (Configure jumper to determine Master or Slave)
  • Analog Meter
  • No event logging
  • Internal fusing
  • ntegrated filtering and transient suppression
  • >95% efficient

M3645 Series(New)

  • 208 - 600VAC support with 50/60Hz auto select
  • Parallel for up to 750A peak / 600A continuous (Simply add another module - no setup)
  • LEDs or Interactive Digital Display
  • Event logging
  • External fusing
  • Integrated filtering and transient suppression
  • >99% efficient
