SOLUTIONS FOR MITSUBISHI DRIVES

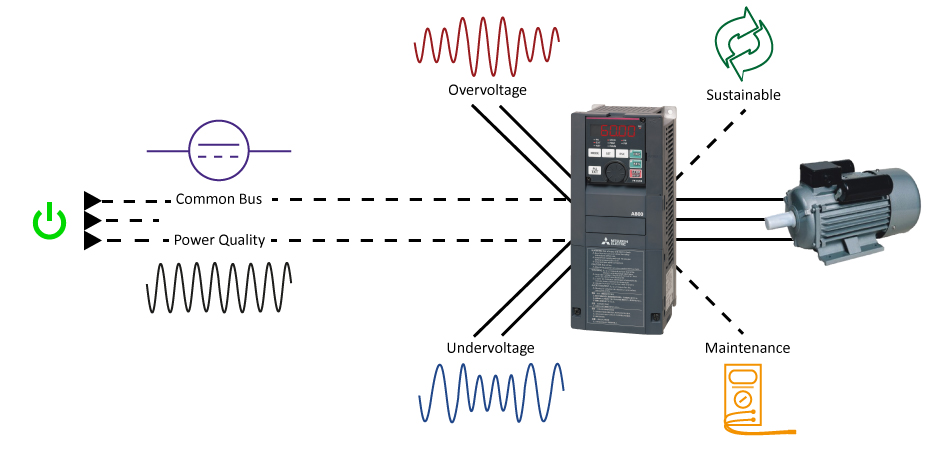

Bonitron has a vast offering of variable frequency drive accessories for Mitsubishi. Select your drive series below to match Bonitron Braking Transistors, Line Regeneration, or Single Phase Power Supplies with your drive. Please contact Bonitron for Resistor sizing and for applications with ratings above those shown in the tables. DC bus connections are needed to connect a Bonitron transistor, line regen or power supply.

For more information please call Bonitron at 615-244-2825 or submit info here.

Please select your drive to show the table to match your drive to our Bonitron products:


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3575T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3575T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3575T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3575T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3575T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3575T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Click button below to see product table for your drive.

Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3575T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3575T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
20 - 25 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
25 - 40 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 0 - 20% M3575T-L150 150 A 38 A 2.5 Ω 17.75" x 5.50" x 8.00"
40 - 50 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
50 - 65 HP 0 - 20% M3575T-L200 200 A 51 A 1.9 Ω 17.75" x 7.00" x 8.00"
50 - 65 HP 20 - 50% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12 x 10.50"
50 - 65 HP 50 - 100% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12 x 10.50"
65 - 100 HP 0 - 20% M3575T-L300 300 A 77 A 1.3 Ω 17.75" x 7.00" x 8.00"
65 - 100 HP 20 - 50% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
65 - 100 HP 50 - 100% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 0 - 20% M3575T-L600 600 A 155 A 0.7 Ω 17.75" x 7.00" x 8.00"
100 - 200 HP 20 - 50% M3452-L600K6 600 A 300 A 0.63 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 50 - 100% M3452-L1200K10 1200 A 600 A 0.32 Ω 20.00" x 10.00" x 10.50"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3575T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3575T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 0 - 20% M3575T-E125 125 A 32 A 5 Ω 17.75" x 5.50" x 8.00"
40 - 65 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 50 - 100% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 0 - 20% M3575T-E150 150 A 38 A 4.1 Ω 17.75" x 5.50" x 8.00"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3575T-E200 200 A 51 A 3.1 Ω 17.75" x 7.00" x 8.00"
80 - 100 HP 20 - 50% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
80 - 100 HP 50 - 100% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 0 - 20% M3575T-E300 300 A 77 A 2 Ω 17.75" x 7.00" x 8.00"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 0 - 20% M3575T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
160 - 325 HP 20 - 50% M3452-E600K6 600 A 300 A 1.04 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 50 - 100% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
325 - 350 HP 0 - 20% M3575T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
325 - 350 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
325 - 350 HP 20 - 50% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
350 - 440 HP 0 - 20% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
440 - 660 HP 0 - 20% M3575T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 20 - 50% M3575T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 0 - 20% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 20 - 50% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 50 - 75% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3575T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3575T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 0 - 20% M3575T-H125 125 A 32 A 6 Ω 17.75" x 5.50" x 8.00"
50 - 80 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 50 - 100% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3575T-H150 150 A 38 A 5 Ω 17.75" x 5.50" x 8.00"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
100 - 130 HP 0 - 20% M3575T-H200 200 A 51 A 3.75 Ω 17.75" x 7.00" x 8.00"
100 - 130 HP 20 - 50% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
100 - 130 HP 50 - 100% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 0 - 20% M3575T-H300 300 A 77 A 2.5 Ω 17.75" x 7.00" x 8.00"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 0 - 20% M3575T-H600 600 A 155 A 1.25 Ω 17.75" x 7.00" x 8.00"
200 - 400 HP 20 - 50% M3452-H600K6 600 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 50 - 100% M3452-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
400 - 530 HP 0 - 20% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 20 - 50% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
530 - 800 HP 0 - 20% M3575T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 20 - 50% M3575T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
800 - 1060 HP 0 - 20% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
800 - 1060 HP 20 - 50% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
800 - 1060 HP 50 - 75% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-L050 160 A 285 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-L075 290 A 550 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-L125 360 A 670 A 32.10" x 14.00" x 12.20"
125 - 225 HP (2x)M3712-H125 360 A 655 A (2x) 32.10" x 14.00" x 12.20"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-H050 90 A 185 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-H075 135 A 250 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-H125 200 A 365 A 32.10" x 14.00" x 12.20"
125 - 225 HP (2x)M3712-H125 360 A 655 A (2x) 32.10" x 14.00" x 12.20"
225 - 335 HP (3x) M3712-H125 540 A 985 A (3x) 32.10" x 14.00" x 12.20"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-L150-K7 150 A 20.00" x 7.12" x 10.35"
20 - 50 HP Yes M3713SC-L150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 75 HP No M3713DM-L225-K7 225 A 20.00" x 7.12" x 10.35"
50 - 75 HP Yes M3713SC-L225-K7 225 A 20.00" x 7.12" x 10.35"
75 - 125 HP No M3713DM-L375-K10 375 A 20.00" x 10.00" x 10.50"
75 - 125 HP Yes M3713SC-L375-K10 375 A 20.00" x 10.00" x 10.50"
125 - 225 HP No (2x) M3713DM-L375-K10 675 A (2x)20.00" x 10.00" x 10.50"
125 - 225 HP Yes (2x) M3713SC-L375-K10 675 A (2x)20.00" x 10.00" x 10.50"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 100 HP No M3713DM-H150-K7 150 A 20.00" x 7.12" x 10.35"
40 - 100 HP Yes M3713SC-H150-K7 150 A 20.00" x 7.12" x 10.35"
100 - 150 HP No M3713DM-H225-K7 225 A 20.00" x 7.12" x 10.35"
100 - 150 HP Yes M3713SC-H225-K7 225 A 20.00" x 7.12" x 10.35"
150 - 250 HP No M3713DM-H375-K10 375 A 20.00" x 10.00" x 10.50"
150 - 250 HP Yes M3713SC-H375-K10 375 A 20.00" x 10.00" x 10.50"
250 - 450 HP No (2x) M3713DM-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
250 - 450 HP Yes (2x) M3713SC-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
450 - 675 HP No (3x) M3713DM-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"
450 - 675 HP Yes (3x) M3713SC-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Click button below to see product table for your drive.

Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
20 - 25 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
25 - 40 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 0 - 20% M3575T-L150 150 A 38 A 2.5 Ω 17.75" x 5.50" x 8.00"
40 - 50 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
50 - 65 HP 0 - 20% M3575T-L200 200 A 51 A 1.9 Ω 17.75" x 7.00" x 8.00"
50 - 65 HP 20 - 50% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12" x 10.50"
50 - 65 HP 50 - 100% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12" x 10.50"
65 - 100 HP 0 - 20% M3575T-L300 300 A 77 A 1.3 Ω 17.75" x 7.00" x 8.00"
65 - 100 HP 20 - 50% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
65 - 100 HP 50 - 100% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 0 - 20% M3575T-L600 600 A 155 A 0.7 Ω 17.75" x 7.00" x 8.00"
100 - 200 HP 20 - 50% M3452-L600K6 600 A 300 A 0.63 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 50 - 100% M3452-L1200K10 1200 A 600 A 0.32 Ω 20.00" x 10.00" x 10.50"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 0 - 20% M3675T-E125 125 A 32 A 5 Ω 17.75" x 5.50" x 8.00"
40 - 65 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 50 - 100% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 0 - 20% M3675T-E150 150 A 38 A 4.1 Ω 17.75" x 5.50" x 8.00"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3675T-E200 200 A 51 A 3.1 Ω 17.75" x 7.00" x 8.00"
80 - 100 HP 20 - 50% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
80 - 100 HP 50 - 100% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 0 - 20% M3675T-E300 300 A 77 A 2 Ω 17.75" x 7.00" x 8.00"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 0 - 20% M3675T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
160 - 325 HP 20 - 50% M3452-E600K6 600 A 300 A 1.04 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 50 - 100% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
325 - 350 HP 0 - 20% M3675T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
325 - 350 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
325 - 350 HP 20 - 50% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
350 - 440 HP 0 - 20% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
440 - 660 HP 0 - 20% M3675T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 20 - 50% M3675T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 0 - 20% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 20 - 50% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 50 - 75% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 0 - 20% M3675T-H125 125 A 32 A 6 Ω 17.75" x 5.50" x 8.00"
50 - 80 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 50 - 100% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3675T-H150 150 A 38 A 5 Ω 17.75" x 5.50" x 8.00"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
100 - 130 HP 0 - 20% M3675T-H200 200 A 51 A 3.75 Ω 17.75" x 7.00" x 8.00"
100 - 130 HP 20 - 50% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
100 - 130 HP 50 - 100% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 0 - 20% M3675T-H300 300 A 77 A 2.5 Ω 17.75" x 7.00" x 8.00"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 0 - 20% M3675T-H600 600 A 155 A 1.25 Ω 17.75" x 7.00" x 8.00"
200 - 400 HP 20 - 50% M3452-H600K6 600 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 50 - 100% M3452-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
400 - 530 HP 0 - 20% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 20 - 50% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
530 - 800 HP 0 - 20% M3675T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 20 - 50% M3675T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
575 - 600 VAC | 940VDC Setpoint
0 - 63 HP 0 - 20% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 20 - 50% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
0 - 63 HP 50 - 100% M3452-C75B7 75 A 75 A 12.5 Ω 17.75" x 7.00" x 8.10"
63 - 125 HP 0 - 20% M3452-C150B7 150 A 150 A 6.3 Ω 17.75" x 7.00" x 8.10"
63 - 125 HP 20 - 50% M3452-C150B7 150 A 150 A 6.3 Ω 17.75" x 7.00" x 8.10"
63 - 125 HP 50 - 100% M3452-C150B7 150 A 150 A 6.3 Ω 17.75" x 7.00" x 8.10"
125 - 165 HP 0 - 20% M3452-C200K6 200 A 200 A 4.7 Ω 20.00" x 7.12" x 10.50"
125 - 165 HP 20 - 50% M3452-C200K6 200 A 200 A 4.7 Ω 20.00" x 7.12" x 10.50"
125 - 165 HP 50 - 100% M3452-C200K6 200 A 200 A 4.7 Ω 20.00" x 7.12" x 10.50"
165 - 250 HP 0 - 20% M3452-C300K6 300 A 300 A 3.2 Ω 20.00" x 7.12" x 10.50"
165 - 250 HP 20 - 50% M3452-C300K6 300 A 300 A 3.2 Ω 20.00" x 7.12" x 10.50"
165 - 250 HP 50 - 100% M3452-C300K6 300 A 300 A 3.2 Ω 20.00" x 7.12" x 10.50"
250 - 500 HP 0 - 20% M3452-C600K6 600 A 600 A 1.6 Ω 20.00" x 7.12" x 10.50"
250 - 500 HP 20 - 50% M3452-C600K6 600 A 600 A 1.6 Ω 20.00" x 7.12" x 10.50"
250 - 500 HP 50 - 100% M3452-C1200K10 1200 A 600 A 0.78 Ω 20.00" x 10.00" x 10.50"
500 - 660 HP 0 - 20% M3452-C800K9 800 A 400 A 1.2 Ω 20.00" x 9.05" x 10.25"
500 - 660 HP 20 - 50% M3452-C800K9 800 A 400 A 1.2 Ω 20.00" x 9.05" x 10.25"
500 - 660 HP 50 - 100% M3452-C1600M14 1600 A 1200 A 0.58 Ω 28.00" x 13.90" x 14.60"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-L050 160 A 285 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-L075 290 A 550 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-L125 360 A 670 A 32.10" x 14.00" x 12.20"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-H050 90 A 185 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-H075 135 A 250 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-H125 200 A 365 A 32.10" x 14.00" x 12.20"
125 - 225 HP (2x)M3712-H125 360 A 655 A (2x) 32.10" x 14.00" x 12.20"
225 - 335 HP (3x) M3712-H125 540 A 985 A (3x) 32.10" x 14.00" x 12.20"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-L150-K7 150 A 20.00" x 7.12" x 10.35"
20 - 50 HP Yes M3713SC-L150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 75 HP No M3713DM-L225-K7 225 A 20.00" x 7.12" x 10.35"
50 - 75 HP Yes M3713SC-L225-K7 225 A 20.00" x 7.12" x 10.35"
75 - 125 HP No M3713DM-L375-K10 375 A 20.00" x 10.00" x 10.50"
75 - 125 HP Yes M3713SC-L375-K10 375 A 20.00" x 10.00" x 10.50"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 100 HP No M3713DM-H150-K7 150 A 20.00" x 7.12" x 10.35"
40 - 100 HP Yes M3713SC-H150-K7 150 A 20.00" x 7.12" x 10.35"
100 - 150 HP No M3713DM-H225-K7 225 A 20.00" x 7.12" x 10.35"
100 - 150 HP Yes M3713SC-H225-K7 225 A 20.00" x 7.12" x 10.35"
150 - 250 HP No M3713DM-H375-K10 375 A 20.00" x 10.00" x 10.50"
150 - 250 HP Yes M3713SC-H375-K10 375 A 20.00" x 10.00" x 10.50"
250 - 450 HP No (2x) M3713DM-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
250 - 450 HP Yes (2x) M3713SC-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
450 - 675 HP No (3x) M3713DM-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"
450 - 675 HP Yes (3x) M3713SC-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"
575 - 600 VAC Drives
0 - 20 HP No M3713DM-C030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 20 HP Yes M3713SC-C030-B5 30 A 17.75" x 5.50" x 7.80"
40 - 50 HP No M3713DM-C075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 50 HP Yes M3713SC-C075-B5 75 A 17.75" x 5.50" x 7.80"
50 - 125 HP No M3713DM-C150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 125 HP Yes M3713SC-C150-K7 150 A 20.00" x 7.12" x 10.35"
125 - 175 HP No M3713DM-C225-K7 225 A 20.00" x 7.12" x 10.35"
125 - 175 HP Yes M3713SC-C225-K7 225 A 20.00" x 7.12" x 10.35"
175 - 300 HP No M3713DM-C375-K10 375 A 20.00" x 10.00" x 10.50"
175 - 300 HP Yes M3713SC-C375-K10 375 A 20.00" x 10.00" x 10.50"
300 - 540 HP No (2x) M3713DM-C375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
300 - 540 HP Yes (2x) M3713SC-C375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
540 - 810 HP No (3x) M3713DM-C375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"
540 - 810 HP Yes (3x) M3713SC-C375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Click button below to see product table for your drive.

Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
230 - 240 VAC | 375VDC Setpoint
0 - 3.3 HP 0 - 20% M3675T-L10 10 A 2 A 38 Ω 7.00" x 2.06" x 6.75"
0 - 3.3 HP 20 - 50% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
0 - 3.3 HP 50 - 100% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 0 - 20% M3675T-L15 15 A 3.8 A 25 Ω 12.75" x 3.00" x 8.70"
3.3 - 5 HP 20 - 50% M3675T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
3.3 - 5 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 0 - 20% M3675T-L30 30 A 7.75 A 12.5 Ω 12.75" x 3.00" x 8.70"
5 - 10 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
5 - 10 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-L60 60 A 15 A 6.25 Ω 12.75" x 4.00" x 8.70"
10 - 20 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
20 - 25 HP 20 - 50% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
20 - 25 HP 50 - 100% M3452-L75B7 75 A 75 A 5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 0 - 20% M3575T-L125 125 A 32 A 3 Ω 17.75" x 5.50" x 8.00"
25 - 40 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
25 - 40 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 0 - 20% M3575T-L150 150 A 38 A 2.5 Ω 17.75" x 5.50" x 8.00"
40 - 50 HP 20 - 50% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
40 - 50 HP 50 - 100% M3452-L150B7 150 A 150 A 2.5 Ω 17.75" x 7.00" x 8.10"
50 - 65 HP 0 - 20% M3575T-L200 200 A 51 A 1.9 Ω 17.75" x 7.00" x 8.00"
50 - 65 HP 20 - 50% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12" x 10.50"
50 - 65 HP 50 - 100% M3452-L200K6 200 A 200 A 1.9 Ω 20.00" x 7.12" x 10.50"
65 - 100 HP 0 - 20% M3575T-L300 300 A 77 A 1.3 Ω 17.75" x 7.00" x 8.00"
65 - 100 HP 20 - 50% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
65 - 100 HP 50 - 100% M3452-L300K6 300 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 0 - 20% M3575T-L600 600 A 155 A 0.7 Ω 17.75" x 7.00" x 8.00"
100 - 200 HP 20 - 50% M3452-L600K6 600 A 300 A 0.63 Ω 20.00" x 7.12" x 10.50"
100 - 200 HP 50 - 100% M3452-L1200K10 1200 A 600 A 0.32 Ω 20.00" x 10.00" x 10.50"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
380 - 415 VAC | 620VDC Setpoint
0 - 5 HP 0 - 20% M3675T-E10 10 A 2 A 62 Ω 7.00" x 2.06" x 6.75"
0 - 5 HP 20 - 50% M3675T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
0 - 5 HP 50 - 100% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 0 - 20% M3675T-E15 15 A 3.8 A 41.25 Ω 12.75" x 3.00" x 8.70"
5 - 8 HP 20 - 50% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
5 - 8 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 0 - 20% M3575T-E30 30 A 7.75 A 20.5 Ω 12.75" x 3.00" x 8.70"
8 - 15 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
8 - 15 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 0 - 20% M3675T-E75 75 A 19 A 8.25 Ω 12.75" x 4.00" x 8.70"
15 - 40 HP 20 - 50% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
15 - 40 HP 50 - 100% M3452-E75B7 75 A 75 A 8.27 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 0 - 20% M3675T-E125 125 A 32 A 5 Ω 17.75" x 5.50" x 8.00"
40 - 65 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
40 - 65 HP 50 - 100% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 0 - 20% M3675T-E150 150 A 38 A 4.1 Ω 17.75" x 5.50" x 8.00"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
65 - 80 HP 20 - 50% M3452-E150B7 150 A 150 A 4.13 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3675T-E200 200 A 51 A 3.1 Ω 17.75" x 7.00" x 8.00"
80 - 100 HP 20 - 50% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
80 - 100 HP 50 - 100% M3452-E200K6 200 A 200 A 3.1 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 0 - 20% M3675T-E300 300 A 77 A 2 Ω 17.75" x 7.00" x 8.00"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
100 - 160 HP 20 - 50% M3452-E300K6 300 A 300 A 2.07 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 0 - 20% M3675T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
160 - 325 HP 20 - 50% M3452-E600K6 600 A 300 A 1.04 Ω 20.00" x 7.12" x 10.50"
160 - 325 HP 50 - 100% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
325 - 350 HP 0 - 20% M3675T-E600 600 A 155 A 1.1 Ω 17.75" x 7.00" x 8.00"
325 - 350 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
325 - 350 HP 20 - 50% M3452-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
350 - 440 HP 0 - 20% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 20 - 50% M3452-E800K9 800 A 400 A 0.78 Ω 20.00" x 7.12" x 10.50"
350 - 440 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
440 - 660 HP 0 - 20% M3675T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 20 - 50% M3675T-E1200K10 1200 A 600 A 0.52 Ω 20.00" x 10.00" x 10.50"
440 - 660 HP 50 - 100% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 0 - 20% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 20 - 50% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
660 - 885 HP 50 - 75% M3452-E1600M14 1600 A 1200 A 0.39 Ω 28.00" x 13.90" x 14.60"
Drive Power Duty Model Number Braking Current
(Peak)
Braking Current
(RMS)
Minimum
Resistance
Dimensions
(H x W x D)
460 - 480 VAC | 750VDC Setpoint
0 - 6.5 HP 0 - 20% M3675T-H10 10 A 2 A 75 Ω 7.00" x 2.06" x 6.75"
0 - 6.5 HP 20 - 50% M3675T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
0 - 6.5 HP 50 - 100% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 0 - 20% M3675T-H15 15 A 3.8 A 50 Ω 12.75" x 3.00" x 8.70"
6.5 - 10 HP 20 - 50% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
6.5 - 10 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 0 - 20% M3575T-H30 30 A 7.75 A 25 Ω 12.75" x 3.00" x 8.70"
10 - 20 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
10 - 20 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 0 - 20% M3675T-H75 75 A 19 A 10 Ω 12.75" x 4.00" x 8.70"
20 - 50 HP 20 - 50% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
20 - 50 HP 50 - 100% M3452-H75B7 75 A 75 A 10 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 0 - 20% M3675T-H125 125 A 32 A 6 Ω 17.75" x 5.50" x 8.00"
50 - 80 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
50 - 80 HP 50 - 100% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 0 - 20% M3675T-H150 150 A 38 A 5 Ω 17.75" x 5.50" x 8.00"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
80 - 100 HP 20 - 50% M3452-H150B7 150 A 150 A 5 Ω 17.75" x 7.00" x 8.10"
100 - 130 HP 0 - 20% M3675T-H200 200 A 51 A 3.75 Ω 17.75" x 7.00" x 8.00"
100 - 130 HP 20 - 50% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
100 - 130 HP 50 - 100% M3452-H200K6 200 A 200 A 3.8 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 0 - 20% M3675T-H300 300 A 77 A 2.5 Ω 17.75" x 7.00" x 8.00"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
130 - 200 HP 20 - 50% M3452-H300K6 300 A 300 A 2.5 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 0 - 20% M3675T-H600 600 A 155 A 1.25 Ω 17.75" x 7.00" x 8.00"
200 - 400 HP 20 - 50% M3452-H600K6 600 A 300 A 1.25 Ω 20.00" x 7.12" x 10.50"
200 - 400 HP 50 - 100% M3452-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
400 - 530 HP 0 - 20% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 20 - 50% M3452-H800K9 800 A 400 A 0.93 Ω 20.00" x 9.05" x 10.25"
400 - 530 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"
530 - 800 HP 0 - 20% M3675T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 20 - 50% M3675T-H1200K10 1200 A 600 A 0.63 Ω 20.00" x 10.00" x 10.50"
530 - 800 HP 50 - 100% M3452-H1600M14 1600 A 1200 A 0.47 Ω 28.00" x 13.90" x 14.60"

* Requires external reactor. Reactor sold by Bonitron

Drive Power
(Nominal)
Model Number Output Current Input Current
(AC RMS)
Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 30 HP M3712-L030 100 A 175 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-L050 160 A 285 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-L075 290 A 550 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-L125 360 A 670 A 32.10" x 14.00" x 12.20"
460 - 480 VAC Drives
0 - 30 HP M3712-H030 55 A 115 A 20.00" x 7.12" x 10.30"
30 - 50 HP M3712-H050 90 A 185 A 20.00" x 7.12" x 10.30"
50 - 75 HP M3712-H075 135 A 250 A 25.00" x 10.00" x 10.20"
75 - 125 HP M3712-H125 200 A 365 A 32.10" x 14.00" x 12.20"
125 - 225 HP (2x)M3712-H125 360 A 655 A (2x) 32.10" x 14.00" x 12.20"
225 - 335 HP (3x) M3712-H125 540 A 985 A (3x) 32.10" x 14.00" x 12.20"

Line Reactor Required. Available from Bonitron.

Drive Power
(Nominal)
Precharge Model Number Output Current Dimensions
(H x W x D)
208 - 240 VAC Drives
0 - 7.5 HP No M3713DM-L030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 7.5 HP Yes M3713SC-L030-B5 30 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
7.5 - 20 HP Yes M3713SC-L075-B5 75 A 17.75" x 5.50" x 7.80"
20 - 50 HP No M3713DM-L150-K7 150 A 20.00" x 7.12" x 10.35"
20 - 50 HP Yes M3713SC-L150-K7 150 A 20.00" x 7.12" x 10.35"
50 - 75 HP No M3713DM-L225-K7 225 A 20.00" x 7.12" x 10.35"
50 - 75 HP Yes M3713SC-L225-K7 225 A 20.00" x 7.12" x 10.35"
75 - 125 HP No M3713DM-L375-K10 375 A 20.00" x 10.00" x 10.50"
75 - 125 HP Yes M3713SC-L375-K10 375 A 20.00" x 10.00" x 10.50"
460 - 480 VAC Drives
0 - 15 HP No M3713DM-H030-B5 30 A 17.75" x 5.50" x 7.80"
0 - 15 HP Yes M3713SC-H030-B5 30 A 17.75" x 5.50" x 7.80"
15 - 40 HP No M3713DM-L075-B5 75 A 17.75" x 5.50" x 7.80"
15 - 40 HP Yes M3713SC-H075-B5 75 A 17.75" x 5.50" x 7.80"
40 - 100 HP No M3713DM-H150-K7 150 A 20.00" x 7.12" x 10.35"
40 - 100 HP Yes M3713SC-H150-K7 150 A 20.00" x 7.12" x 10.35"
100 - 150 HP No M3713DM-H225-K7 225 A 20.00" x 7.12" x 10.35"
100 - 150 HP Yes M3713SC-H225-K7 225 A 20.00" x 7.12" x 10.35"
150 - 250 HP No M3713DM-H375-K10 375 A 20.00" x 10.00" x 10.50"
150 - 250 HP Yes M3713SC-H375-K10 375 A 20.00" x 10.00" x 10.50"
250 - 450 HP No (2x) M3713DM-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
250 - 450 HP Yes (2x) M3713SC-H375-K10 675 A (2x) 20.00" x 10.00" x 10.50"
450 - 675 HP No (3x) M3713DM-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"
450 - 675 HP Yes (3x) M3713SC-H375-K10 1010 A (3x) 20.00" x 10.00" x 10.50"

Notes:
Contact Bonitron for Resistor sizing. Transistors are sized for 150% overload.
Tables are a general guide only and selections should be verified by those purchasing equipment. DC bus connections needed to connect a Bonitron transistor, line regen or power supply. Confirm resistor ohm rating is higher than drive's min ohm if connecting directly to drive brake. Please contact Bonitron at 615-244-2825 to verify you have the best solution for your spec.


Additional Drive Solutions

Mitsubishi/Bonitron Drive Schematic

Back to Top
